Category	Specification
Model Name	FAW Jiefang JH5 LNG Tractor Truck
Vehicle Type	Long-haul heavy-duty tractor (low-emission LNG version)
Primary Application	Trunk logistics, dry freight, cold chain, container transport

Engine Options	FAW CA6SM4-LNG / Weichai WP13NG (natural gas engines)
Power Output	430–530 HP
Max Torque	2200–2500 Nm
Transmission	FAST 12-speed manual or AMT Optional: ZF AMT
Drive Type	6×4 (standard) / 4×2 (select markets)
Emission Standard	China VI B (Natural Gas, compliant with Euro VI equivalent)

LNG Tank Capacity	500L – 1000L cryogenic LNG tank (single or dual tank configuration)
Estimated Range	1,000 – 1,500 km per fill (depending on load, terrain, tank size)
Fuel Consumption	Approx. 28–32 kg LNG / 100 km
Refueling Time	10–15 minutes
TCO Advantage	Fuel cost savings of 20–30% over diesel

Cabin Type	High-roof, wide-body sleeper cab (single or double bunk)
Interior Comfort	Air suspension seat, electric windows, climate control, blackout curtains
Dashboard	Digital + analog hybrid cluster with LNG system display
Infotainment System	Optional 7–10” LCD screen with Bluetooth / Navigation / Reversing Camera
Storage	Overhead compartments, center console, under-bed storage
Driver-Oriented Features	Refrigerator (optional), USB charging, ambient LED lighting

Safety Systems	ABS, ESC, AEBS, LDWS, Hill-start assist, TPMS
Braking System	Dual-circuit air brakes + engine retarder Optional hydraulic retarder
Telematics Platform	FAW Zhitu System: fuel monitoring, driver behavior, remote diagnostics
Cameras & Sensors	Reversing radar, blind spot monitor (optional), fatigue detection (optional)

GVW (Gross Vehicle Weight)	18 – 49 tons (depending on regional regulations)
Curb Weight	Approx. 8,500 – 9,500 kg (with single LNG tank)
Wheelbase Options	3200 mm / 3600 mm / 3800 mm
Rear Axle Ratio	3.7 / 3.9 / 4.11 (customizable for terrain & load type)
Top Speed	Limited to 89 km/h (regulated)

Industry	Use Case
Long-haul logistics	Interprovincial dry freight and express cargo
Cold chain transport	Fresh food, pharma, frozen goods (with reefer)
Container hauling	Port-based or inland terminal-to-terminal movement
E-commerce trunk lines	Mid/long-haul e-commerce distribution

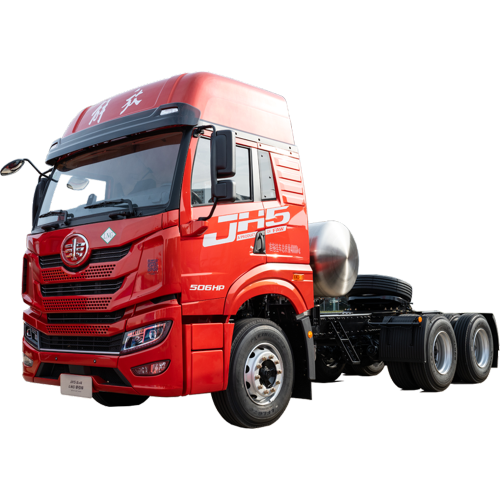

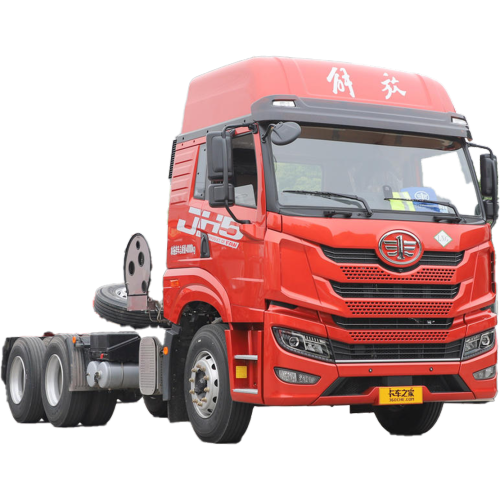

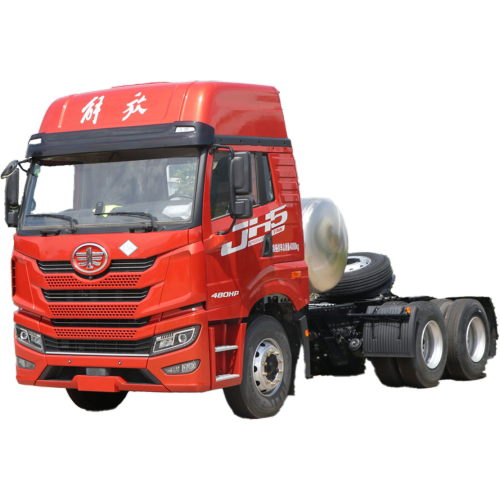

Camión jh5-lng de alta eficiencia para transporte de larga distancia

Descripción general del vehículo
