Category |
Specification |
|
Model |

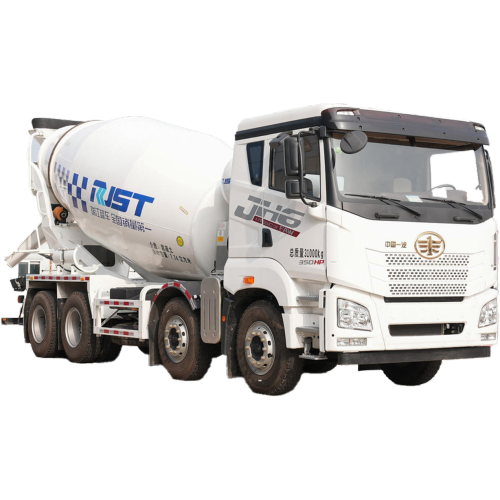

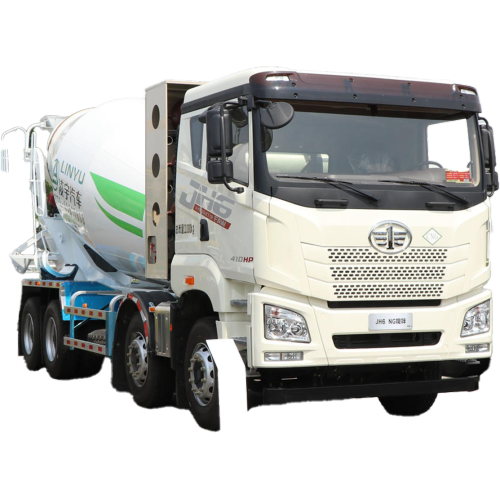

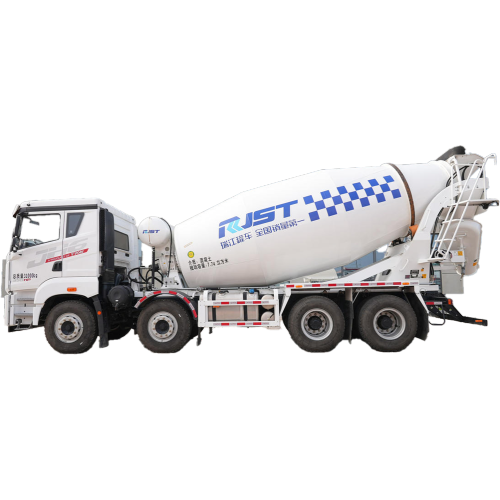

FAW Jiefang JH6 Cement Mixer Truck |
|
Vehicle Type |
Heavy-duty concrete mixer (integrated or chassis + mixer configuration) |
|
Application |
Ready-mix concrete delivery for civil construction, highways, foundations |
|
Drive Type |
8×4 (four-axle) / 6×4 (three-axle) depending on payload and region |
|
Engine Options |
FAW CA6DM2 / CA6DM3 |
|
Power Output |
350–550 HP |
|
Torque |
1600–2500 Nm |
|
Emission Standard |
China VI B |
|
Transmission |
FAST 9-speed / 10-speed / 12-speed manual or AMT |
|
Axles & Capacity |
Reinforced drive axles: 13T / 16T |
|
Suspension |
Heavy-duty multi-leaf spring suspension front and rear |
|
Brake System |
Dual-circuit air brakes + exhaust brake |
|
Mixer Drum Capacity |
6–12 m³ (standard: 8m³ / 10m³ / 12m³) |
|
Drum Material |
Q345 / Wear-resistant steel |
|
Hydraulic System |
Imported or domestic brand (Rexroth, PMP, etc.) |
|
Water Supply |
Pneumatic or electric water pump with top tank |
|
Chute System |
Foldable rear chute + extension chute |
|
Control Panel |
Dual-side manual + in-cab remote control (depending on version) |
|
Cabin Type |
Mid-roof or high-roof sleeper (2-person standard) |
|
Interior |
Durable PVC trim, cloth or optional leather seat |
|
Dashboard |
LCD display with analog cluster, RPM, oil, air pressure gauges |
|
Comfort Options |
A/C, power windows, air suspension seat, sun visor, Bluetooth audio |
|
Visibility |
Wide-angle rearview mirrors + optional reversing camera |
|
Standard Equipment |
ABS, mechanical parking brake, horn, night lighting, steel bumper |
|
Optional Safety Systems |
ESC, LDWS, TPMS, reversing radar, camera |
|
Smart Telematics |
FAW Zhitu (optional) – fleet monitoring, fuel tracking, remote diagnostics |
| Peso bruto total | 31.000 – 35.000 kg (según las especificaciones) | | Peso en vacío | 13.000 – 16.500 kilos | | Velocidad máxima | 80–90 km/h (limitado) | | Tanque de combustible | Tanque de diésel de 300 L a 400 L | | Calificabilidad | 25–30 % (dependiendo de la carga) |
|
Industry |
Use Case |
|
Commercial Concrete Plant |
Daily batch delivery within 50–80 km radius |
|
Civil Engineering |
Road base, housing foundations, bridge works |
|
Urban Construction |
Narrow-entry residential sites |
|
Infrastructure Projects |
Dams, tunnels, high-speed railway segments |
· Construcción de servicio pesado: chasis de máxima resistencia, suspensión específica para mezcladoras, ejes resistentes a sobrecargas
· Tren motriz de torsión fuerte: maneja pendientes + avanza lentamente en el sitio en zonas de construcción difíciles
· Integración de mezclador profesional: tambor y unidad de potencia combinados, reduce las pérdidas y mejora la eficiencia de la mezcla
· Inteligente y seguro: telemática opcional + cámara de marcha atrás + seguridad de carril para entornos de construcción concurridos
