Category	Specification

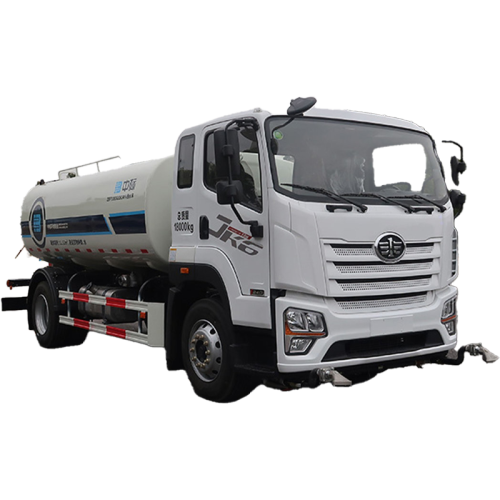

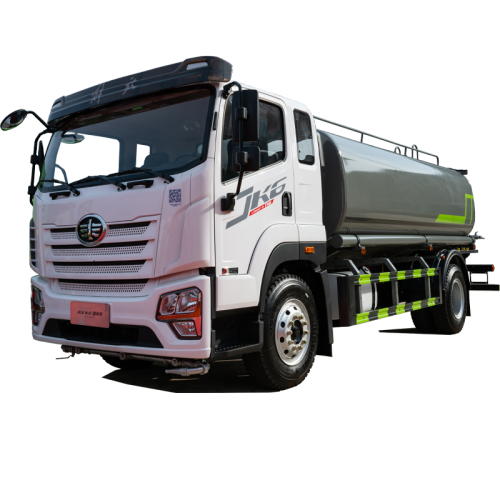

Model Name	FAW Jiefang JK6 Watering Truck
Vehicle Type	Light-to-medium-duty water sprinkler truck
Primary Application	Road flushing, landscaping irrigation, urban dust suppression
Platform	Based on JK6 cargo chassis (4×2 / 6×2) with rear-mounted water tank body

Drive Configuration	4×2 (standard) / 6×2 (high-capacity optional)
Engine Options	Weichai WP4.6 / WP6 FAW CA6DK2 / CA4DB1
Power Output	180–260 HP
Torque	Up to 1000 Nm
Transmission	FAST 8-speed / 9-speed manual AMT optional on select trims
Fuel Type	Diesel (China VI B compliant)
Suspension	Front: Multi-leaf spring Rear: Heavy-duty leaf or optional air suspension
Steering System	Hydraulic power steering

Water Tank Capacity	8,000 – 12,000 Liters (depending on chassis & wheelbase)
Tank Material	Carbon steel with anti-corrosion inner coating (optional stainless steel)
Pump Brand	Domestic brand (e.g. Hangzhou Weilong, Tianjin Tongjie)
Sprinkler Configuration	Front duckbill nozzles, rear circular nozzles, left/right side spray
Water Cannon	High-pressure roof cannon (adjustable jet: 20–30 m range)
Control Options	In-cab electric controls + external manual controls
Water Inlet/Outlet	2" or 3" hose interface with filter, quick-connect type
Other Functions	Self-suction (5m lift), fire hydrant connection port, optional fog cannon

Cab Type	Mid-roof wide cab / High-roof sleeper cab (optional)
Interior Comfort	Cloth seats, A/C, electric windows, LED lighting
Dashboard	LCD + analog hybrid cluster with pump status indicators
Optional Features	Bluetooth radio, USB charging, reversing camera

Standard Safety	ABS, dual-circuit air brake, anti-slip step ladder
Optional Equipment	Reverse radar, LED work lights, rear-view camera, water-level display
Lighting System	Emergency flashers, rear reflectors, fog lights
Chassis Protection	Bottom tank shield, anti-overflow valve, rear protection bar

GVW (Gross Vehicle Weight)	12 – 18 tons (based on configuration)
Curb Weight	7,500 – 10,000 kg
Top Speed	80–90 km/h (limited)
Sprinkler Width	12–16 meters adjustable
Pump Flow Rate	60–90 m³/hour (depending on system spec)

Sector	Example Use
Municipal sanitation	Daily road flushing, dust control
Landscaping & parks	Tree irrigation, green belt watering
Construction sites	Dust suppression on large infrastructure projects
Emergency response	Road washing after chemical or oil spills

Diseño de camiones de riego JK6 confiable y duradero

Descripción general del vehículo
